How To Increase Battery Capacity Of A Goal Zero Yeti Lithium

How You Can Add Batteries To Increase The Capacity Of Your Goal Zero Yeti Lithium

The Goal Zero Yeti power stations come in lots of different sizes and configurations. Some of them are lead-acid batteries and other lithium. In an earlier post, I wrote about how you can double, even triple, the battery capacity of a Yeti 400 and Yeti 1250. Today I am going to help you increase the battery capacity of the Yeti Lithium models.

You can increase the battery capacity of the Yeti Lithium power stations that have an expansion module slot. Like the Yeti 1000, Yeti 1400, and Yeti 3000.

Related Post: 5 Ways To Charge A Goal Zero Yeti Faster

It’s also possible to connect a Yeti Tank Expansion battery to the Yeti 1250, by using the 1250 Ring Terminal Connector Cable. To do this, you’ll remove the lid of the Tank battery to install the ring terminal cable.

Since the MPPT charge controller uses the same expansion module slot, this means you can’t use both at the same time. That’s a bummer, but I believe in future Yeti Lithium power stations, the MPPT charge controller will be built-in, so you can use both.

Now, let’s take a look at what you need to expand the battery capacity, and answer the most frequently asked questions.

How It’s Done

To increase the battery capacity of a Yeti Lithium power station, you can connect Yeti Tank Expansion batteries. But in order to do so, you need a Yeti Link. Let’s take a closer look at each of them and how they work.

The Yeti Link Expansion Module

To connect a Yeti Tank battery to the Yeti power station, you’re going to need the Yeti Link Expansion Module.

Goal Zero 12V Yeti Link LI to Lead Acid, Yeti Link Expansion Module

Check Price at Amazon

The Link Expansion Module is installed where the MPPT charge controller is already installed on the Yeti 3000, or in the empty expansion module slot on the Yeti 1000 and 1400. It’s very easy to install, you just have to remove a couple of plastic screws and connect two cables.

On the front of the Yeti Link, there is an 8mm input capable of inputting 150W to the Tank batteries or the Yeti. There is also a battery indicator with 4 LED lights, that show the state of charge of the Tank batteries with 25% increments.

Related Post: Goal Zero Yeti 1000 Vs Yeti 1400

On the back of the Yeti Link, there is an EC8 port which is where the Yeti Tank batteries are connected.

The EC8 port on the back can also be used to recharge the Yeti from an alternator in a vehicle. To do that, you’ll also need a Male EC8 to Ring Terminal Cable and an EC8 extension cable.

The Yeti Tank Expansion Battery

One Yeti Tank expansion battery holds a 12V battery rated at 100A, which means that it holds 1200 watt-hours. The Yeti 1000 has 1045 watt-hours of battery capacity, so it will more than double the capacity with one expansion battery.

The way the Tank battery works together with the Link module is that it will charge the Yeti battery.

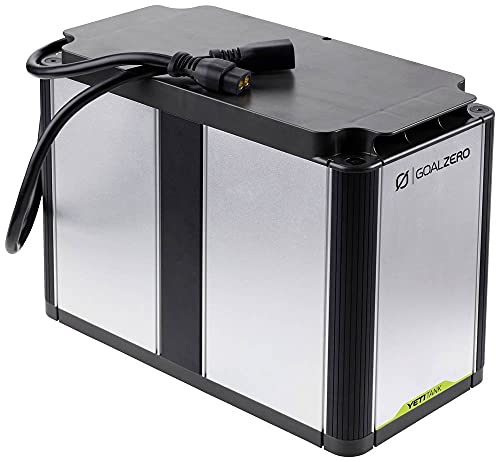

Goal Zero Yeti Expansion Tank Battery

Goal Zero Yeti Expansion Tank Battery

Check Price at Amazon

The only way to recharge the Yeti Tank batteries when connected to the Yeti Link is through the 8mm input on the Yeti Link module. Charging the Yeti via its PWM charge controller with either a wall/car charger or solar panels will not charge the Tank batteries.

When the Tank battery is charged and the Yeti Lithium battery isn’t, you’ll see input on the Yeti screen of between 400-700 watts. This is the Tank battery charging the Yeti battery.

It’s also possible to buy a third-party PWM/MPPT charge controller and connect it directly to the Tank batteries.

Related Post: How To Combine Goal Zero Solar Panels

The Yeti tank expansion battery is not a lithium battery but a deep-cycle AGM battery. You can add as many Tank batteries as you want since each battery has two in/out cables.

How To Connect The Battery To The Link Expansion Module

Connecting the battery to your Yeti is as easy as connecting a cable.

The Yeti Tank battery has two EC8 connectors coming out of it. One of them can be used to connect an additional Tank battery, and the other will be plugged into the back of the Yeti Link expansion module.

Goal Zero has made a video about the Yeti Link expansion kits that you can view down below. I recommend watching it to easily understand how it’s set up and works.

Frequently Asked Questions About The Goal Zero Yeti Link/Tank Battery

Can I Expand A Yeti 400 Lithium?

No, since the Yeti 400 Lithium doesn’t have an expansion module slot, it’s not possible to increase the capacity of a Yeti 400 Lithium.

How Do I Increase The Battery Capacity Of A Yeti 400 And 1250?

I have written a post that answers this question.

You can also connect a Tank expansion battery to the Yeti 1250 with a 1250 Ring Terminal Connector Cable. You’re going to have to remove the lid of the Tank battery to install the ring terminal cable.

How Many Input Watts Can The 8mm Port On The Yeti Link Handle?

It’s an 8mm input port capable of inputting 150W to the Yeti Tank battery/Yeti battery. Just like the other inputs on the Yeti Lithium power stations, it has a 22V limit.

Will The Screen On The Yeti Lithium Tell Me How Charged The Tank Batteries Are?

No, the screen on the Yeti Lithium only tells you the state of charge of the battery inside of the Yeti. The Yeti Link expansion module has a battery indicator made out of 4 lights with 25% increments to let you know how charged the Tank batteries are.

Note that it’s different from the Yeti 400/1250 non-lithium. If you chain batteries to those power stations, they become one large battery in the mind of the Yeti, and the state of charge percentage shown on the screen is based on both batteries that are chained together.

What Is The Maximum Number Of Tank Expansion Batteries I Can Connect?

There is no limit to how many Tank batteries you can connect. The more batteries you have, the more power it will take to recharge them all fully, and the longer it will take.

Related Post: How To Use Third-Party Solar Panels With Goal Zero Yeti

The Tank expansion batteries can only be charged through the 8mm input on the Yeti Link expansion module, which has a maximum input rating of 150W. Unless you’re using it with a Yeti 1250, which will be chained to the Tank battery, and have the possibility to be recharged with the input on the Yeti.

Are The Tank Batteries Waterproof?

No, they’re not.

Are There Extension Cables?

Yes, Goal Zero sells EC8 extension cables (click to view on Amazon) so you can create a longer cable between the Yeti Link and the Tank battery.

Can You Replace The Battery In A Yeti Tank?

Yes, since it uses a 12V 100Ah deep-cycle lead-acid sealed AGM battery, you can replace it with one like it.

Related Post: How To Replace Batteries In A Yeti 150, 400, 1250

Do the Yeti Tank Batteries Need Ventilation?

No, they’re completely sealed and don’t require ventilation.

How Do I Use The Link Expansion Module In A Vehicle To Recharge My Yeti While Driving?

To do that, you’re going to need the Male EC8 to Ring Terminal Cable and an EC8 extension cable.

When it comes to how it’s installed, I recommend watching this video made by Goal Zero.

Does It Hurt The Tank Expansion Battery To Drain It To Empty?

The Yeti Link expansion module protects the Tank expansion battery from draining all the way down to a dangerous level by preventing the battery to go below 20% state of charge. So you don’t have to worry about permanently damaging the battery by draining them.

Please leave a comment down below if you have any questions and I will do my best to help you. Note that I don’t work for Goal Zero, so the best way to get an answer to a very specific question is to give them a call.

4 thoughts on “How To Increase Battery Capacity Of A Goal Zero Yeti Lithium”

  1. I’m trying to use the lifepo batteries I have as generic tanks. GZ says to use AGM instead, but I can’t figure out why (& how to use the lifepo batteries anyway). Any help would be greatly appreciated!!

    Reply
    • Hello Garrick,

      Have you talked to Goal Zero on the phone? I am pretty sure it’s possible if you connect the Victron SmartSolar MPPT charge controller. I don’t have any experience with it but I recommend calling the support.

      Jesse

      Reply
      • I think another question to ask is if GZ has plans to offer a Lithium based Tank? I wonder if there’s something in the Link electronics that prohibits using Lithium, but allows AGM? Or was this a marketing decision and the perception was that few people would be willing to pay the much higher price (despite the advantages)?

        Reply
        • Yeah, I hope they do. I would consider buying a Tank if it was a lithium battery. Definitely a business decision, but I don’t like how they went about it. It should be half the price.
          Jesse

          Reply
